Dynamic Photovoltaic System

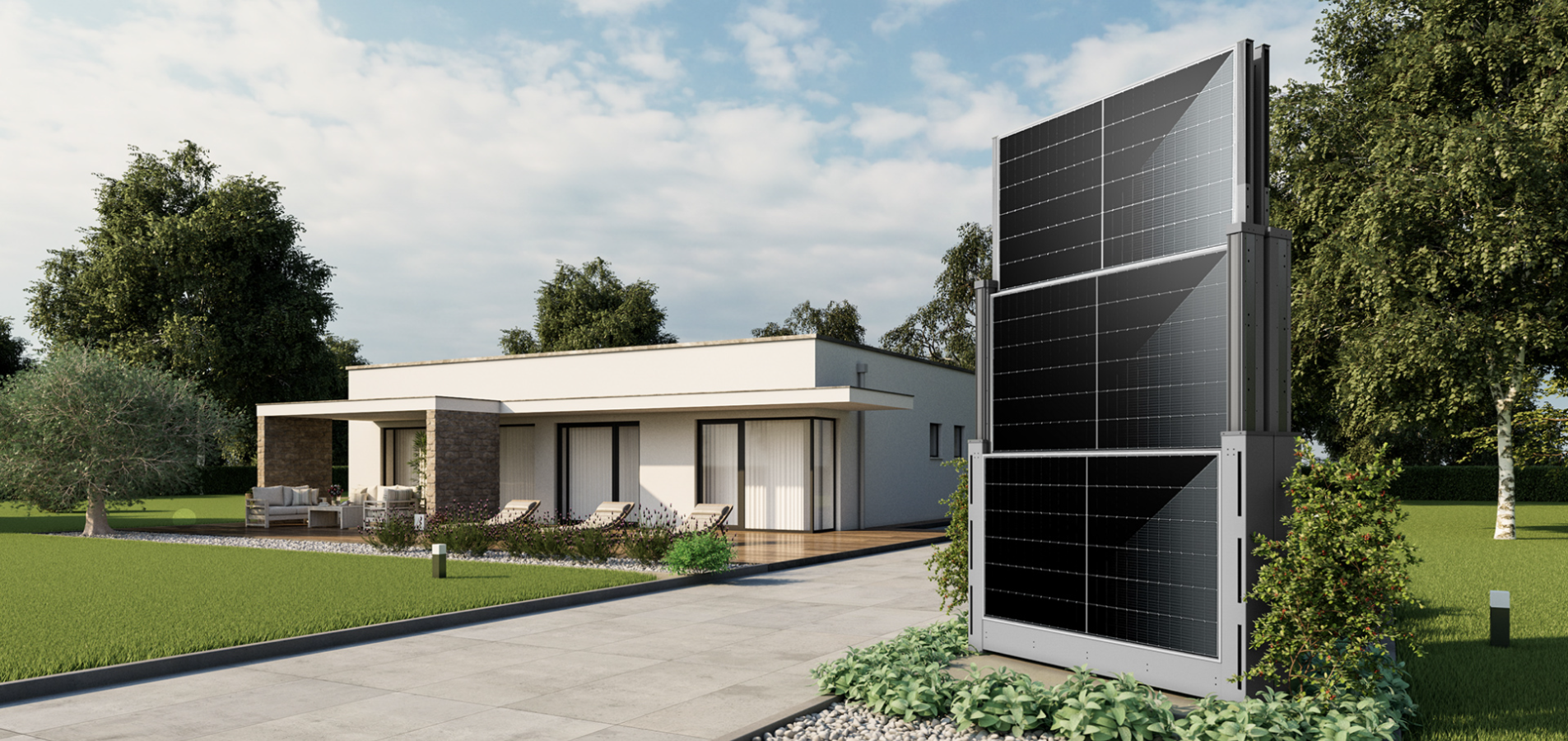

Beautiful, innovative, and practical — with SolarSlide, a new generation of dynamic photovoltaic systems is born.

Simple and Affordable

Solar Slide is incredibly easy to install. It comes in a single kit, requires no administrative permits, and can be set up without the need for specialized installers.

The electrical connection is made at the same time as the grid hookup.

Cutting-Edge Technology

Solar Slide stands out for the high quality of its technical components, designed to ensure maximum energy output and the highest safety in automation and control.

Advantages

• Eliminates issues related to roof installation
• No need to install a safety line
• No landscape authorization required
• Quick and easy startup
• Lower environmental and visual impact
• Reduced design costs, as the system is pre-engineered at the factory
• Easy maintenance and periodic cleaning
• Easy to relocate in case of a house move
• Less indoor space required — no need to install panels, inverters, or batteries inside the home

TECHNICAL DATA

Moduli Q500

I pannelli fotovoltaici Q500 sono moduli ad alta efficienza con 108 celle monocristalline multi-busbar half-cut PERC.
Il modulo si contraddistingue non solo per il suo buon coefficiente termico ma anche per rese superiori in caso di ombreggiamenti o sporco presenti sulla superficie del modulo, garantite da due sezioni indipendenti.

The standard configuration provides a power output of 1.5 kWp, with conversion electronics integrated into the system using microinverter technology.

Dimensions: 1134 x 1722 x 35 mm
Power output: 1.5 kWp (500 Wp x 3)
Protection rating: IP

Microinverter Enphase IQ8MC

Lightweight and compact, with plug & play connectors, the microinverters are optimized for high-power photovoltaic modules.

The microinverter offers the highest power and reliability in the industry and, thanks to its rapid shutdown functionality, meets the most stringent safety standards.

Specific Technical Data

Maximum AC output power                 330W

Nominal grid voltage                            230 V

Nominal grid voltage                                50 Hz

Efficiency                                                  96,7%

Input voltage range (min/max)                     18/60 V V

MPP voltage range (min/max)                            28/45 V

Short-circuit current (DC)                    25 A

Frame

The frame of Sipario is made of steel and coated with epoxy paints that are resistant to oxidation, abrasion, and weather conditions.

Motor

SolarSlide motors are equipped with a noise filter and a circuit with Hall sensors.
The planetary gear reducers feature both metal gears and a metal housing.
The motors are certified as Class A (105°C).
